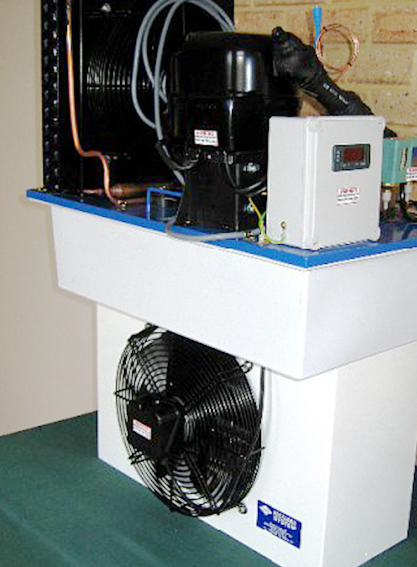

Slide-in Packaged Coldroom Refrigeration Systems
- Standard power requirement 220/240 volt 50hz.
- Easy installation.
- No skilled personnel needed on site.
- Fits in prepared hole.
- Units are supplied with 2.5m of cable and 3 pin plug.
- Reliable and safe operation.
- Controls of conventional design, unaffected by voltage spikes.
- Adjustable digital thermostat, factory set to 2oC with an LED Temperature display.
- Dual pressure safety controls with auto or manual reset cut out on the high pressure side to protect against compressor damage.
- Electronic Eliwell digital thermostat fitted as standard.
- Vibrations free balanced external rotor fans.
- Power coated sheetmetal.
- Moulded white abs. insulated inner panel.
- Evaporator casing, white powder coated aluminium.
-
Features
- Both heat exchange coils use rifle bore tubing.
- Compact construction minimising freight cost.
- Bench tested before packaging.
- Each system has an installation instruction sheet, showing cut out dimensions and positioning, unit to coldroom sealing strip and operating instructions.
MODELS |
REFRIGERATION CAPACITY |
COMPRESSOR |
EVAPORATOR FAN |
POWER INPUT NOMINAL |
|
WATTS (NOMINAL) |
EVAP. KTD (NOMINAL) |
HP (NOMINAL) |
REFRIGERANT |
DIAMETER |
WATTS |
AMPS |
66/4 |
1300 |
5 |
1/2 |
R404A |
300mm |
73 |
3.8 |
68/4 |
1940 |
6.8 |
7/8 |
R404A |
300mm |
73 |
4.1 |
88/4 |
2280 |
7 |
1 1/4 |
R404A |
300mm |
73 |
6.0 |
1212/4 |
3220 |
6 |
1 1/2 |
R404A |
350mm |
130 |
10.2 |
